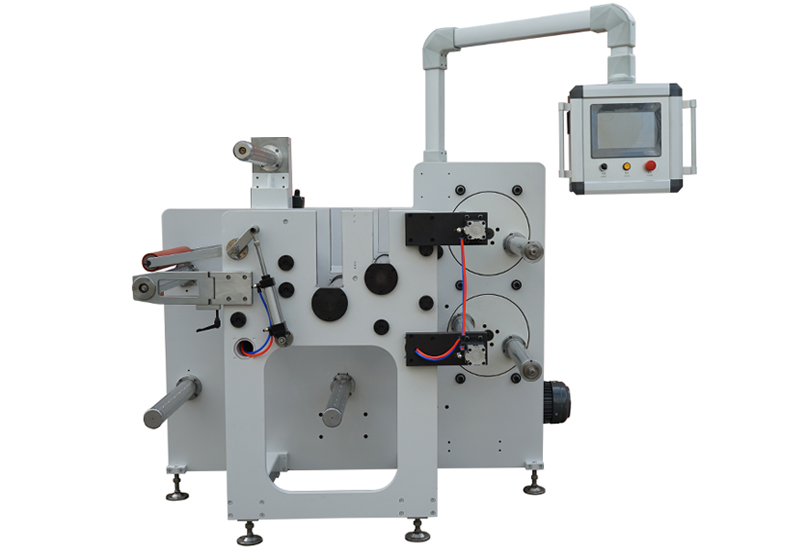

FQK-520 Solar punching and slitting machine
HOME - FQK-520 Solar punching and slitting machineFQK-520 Solar punching and slitting machine
設備詳情
| 型號 | Model | FQK-520 |
| 材料形式 | Material form | 卷材 |
| 最大進料寬度 | Max.size of Board | 520mm |
| 最高工作速度 | Maximum working speed | 80m/min |
| 放卷直徑 | Unwind diameter | 450mm |
| 收卷直徑 | Rewind diameter | 220mm |
| 額定電壓/功率 | Power | 380V/6KW |
| 機器外形尺寸 | Size | 1700*1500*2100mm |
| 機器重量 | Weight | 2000kg |
Function And Characterisic
This equipment adopts high-performance electrical components, centralized control panel display, host servo drive, main discharge shaft pressure rod type passive unwinding, bottom film rewinding and rewinding cycle recycling, bare rubber surface straight cut small hole automatic suction side export Collection, conventional raw material cutting, punching, and winding process are completed in one time, and the reel is automatically switched, which has the advantages of simple operation and high efficiency.
Scope Of Application
Solar perforated tape, film tape slitting, foam/rubber strip half-cutting
