Synchronous skipping die cutting machine
HOME - Synchronous skipping die cutting machineMQ-320/420H Synchronous skipping die cutting machine
Author: ComeFrom: Date:2018-8-17 9:23:10 Hits:4526
Product Presentation
| 型號 | Model | MQ-320H | MQ-420H |
| 最大進料寬度 | Max feeding width | 320mm | 420mm |
| 模板面積 | Max size of board | 330*320mm | 440*420mm |
| 模切面積 | Max die cut area | 300(寬)*300(長)mm | 400(寬)*400(長)mm |
| 模切壓力 | Die cut pressure | 10T | 12T |
| 模切速度 | Die cut speed | ≤200cuts/min | ≤160cuts/min |
| 定位精度 | Precision | ±0.10mm | ±0.10mm |
| 主機功率 | Main power | 3kw | 4.4kw |
| 外形尺寸 | Diamension | 2500*1550*1900mm | 2650*1500*1900mm |
| 電壓 | Voltage | 380V | 380V |
| 重量 | Weight | 2.2T | 2.8T |
| 總功率 | Total power | 5.5kw | 8kw |
HOT PRODUCT

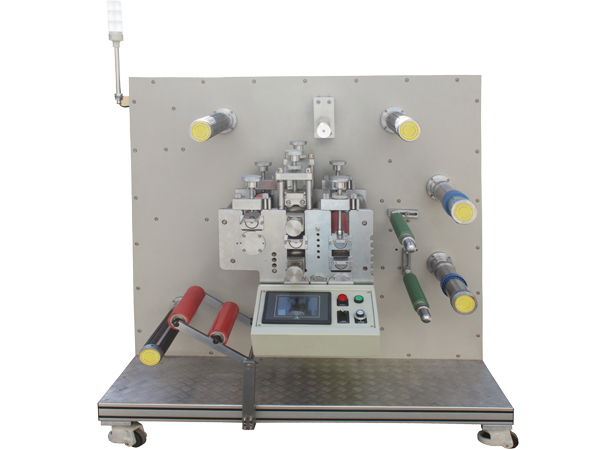

MQ-R-250 Cover tape machine
